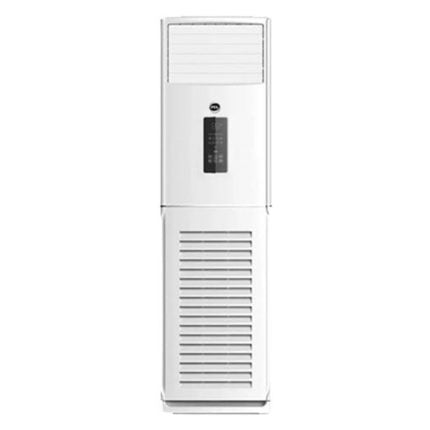

Brand PEL Supplier Model Name CF-140A6A-E**AF2A (Panel # 41) PEL Model Name 48K BOLD Category On/Off – Fixed Speed Floor Standing/ Cabinet Air Conditioner Function Heat & Cool Capacity 48K Bold Climatic Type T1 Additional Feature Picture Rated Capacity Cooling W 14000 Heating W 15000+2500 Rated Power Consumption Cooling W 4650 Heating W 5000+2500 Rated Running Current Cooling W 8 Heating W 8.5+11.4 Max. Input Power W 9500 Max. Input Current A 26 EER Cooling W/W 3.01 COP Heating W/W 3 SEER Power Supply Source V/Ph/Hz 380V/50Hz/3PH Refrigerant R22 Refrigerant Charged g 2800 Max. Discharge Pressure MPa 4 Max. Suction Pressure MPa 1.2 Air Flow Volume m 3 /h 1900 Indoor Noise Level dB 57 Outdoor Noise Level dB 67 Indoor Unit Weight (Net Weight/ Gross Weight) Kg 59/75 Outdoor Unit Weight (Net Weight/ Gross Weight) Kg 95/108 Evaporator Multi-Bend Nos. Rows Nos. 2 Tube Pitch x Row Pitch mm 25*22 Inlet & Outlet Distributor Tube Material Length mm 480 Diameter ? Thickness mm ?9.52/Internal thread tube Quantity Nos. 36 Fin Material Fin Type open window fin Thickness mm Fin Spacing mm 1.42 Fins Per Inch Nos. Length x Height x Width mm 480*900*44 Fan System Fan Type Material Diameter ? Length mm ?380?180 Fan Motor Model YDK?100-10B 1 Type AC/DC Insulation Grade Capacitor ?F 6?F/500V Rated Current A Rated Input Power W 277 Rated Output Power W Motor Speed (H/M/L) rpm High 480?20rpm Med 400?25rpm Low 300?30rpm Air Circulation m 3 /h 1900 Dimensions Unit Dimension (WxDxH) mm 600?313?1868 Packing Dimension (WxDxH) mm 2085?750?520 Condensate Drainage Pipe (O.D? L) mm Connecting pipe Material Length m Liquid tube Diameter ? Thickness mm ?9.52 Gas? tube Diameter ? Thickness mm ?19.05 Stop Valve Liquid Valve Gas Valve Connecting wires Quantity Nos. Length ? Specs m Compressor Parameter Model ATE590SC3Q9JK Drive Mode AC/DC Type Rotary Brand HIGHLY Capacity W 14850 Input W 4950 Rated Current (RLA) A 8.7 Locked Rotor Amp (LRA) A 65 Thermal protector Internal Capacitor uF – Refrigerant oil ml 68HES-H/1600ml Fan System Fan Type Material Vane Number Diameter ? Length mm ?496?143 Fan Motor Model YDK-60-6B 9 Quantity Nos. Type AC/DC Insulation Grade Capacitor ?F 4 Rated Current A Rated...
